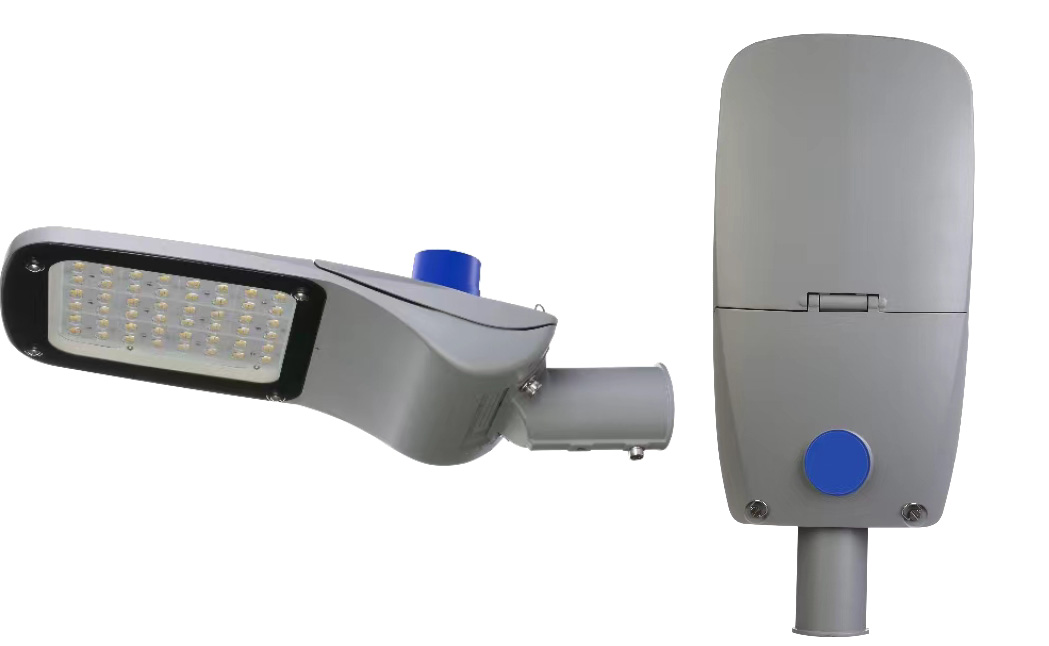

Luma Series Roadway Street Light with NEMA Receptacle Day Light Motion Sensor

Die-casting Aluminum alloy housing. Double 10kV surge protection. Cover opening protection.
  • Wattage20W~200W
  • Input Voltage120-277VAC, 50-60Hz
  • Lumen Efficacy130lm/W
  • Protection RatingIP66 / IK08
  • Independent Driver CompartmentYes
  • Color Temperature3000K~6000K
  • C.R.IRa>70 (>80 available)
  • Total Homonic Distortion≤15%
  • Ambient Temperature-40℃~45℃
  • Warranty5~10 years
  • More Less
    • Model:
      20W~200W interval of 10W
    Description Specifications
    Description

    Product Summary:

    The Luma Series LED Street Light adopts modern streamline and self-cleaning design, die-casting Aluminum alloy housing. The double 10kV surge protection includes driver's surge protection and dedicated SPD's surge protection. So that the street lamp can be used in areas with frequent thunderstorms.



    The Luma Series lamp housing is made of die-casting aluminum, which is environmentally friendly and pollution-free. The reasonable structure design ensures the effective heat dissipation performance, waterproof and dustproof. The luminaire surface is with UV-resistant and anti-corrosive treatment, and the overall luminaire meets the IP66 standard.


    Features:

    • Modern streamline and self-cleaning lamp design.
    • High-transparency tempered glass cover.
    • Power supply cavity freehand quick opening design, Tool-free maintenance.
    • Cover opening protection. Power would automatically cut off once the luminarie body opened.
    • Double 10kV surge protection.
    • Adjustable bracket with clear scale for vertical and horizontal installation.
    • The light head is adjustable from -20° to +15°.
    • IP66& IK08
    • 5 years warranty.

    Sensor:
    The standard type is without a sensor. Photocell & Microwave motion sensor is available if needed.

    sensor of Luma series light
    Dimension:
    dimension of Luma series light

    Specifications
    Model All Series (20W~200W)
    Input Voltage 120-277VAC, 50-60Hz
    SPD 10kV(20kV optional)
    PF 0.95
    Lumen Efficiency 130lm/W
    CCT 3000K~6000K
    THD 15%
    CRI Ra>70 (>80 available)
    Beam Angle  Type II
    L70 Calculated >300,000h
    Operating Temp. -40~45
    IP/IK Rating IP66 / IK08
    Waranty 5~10  years

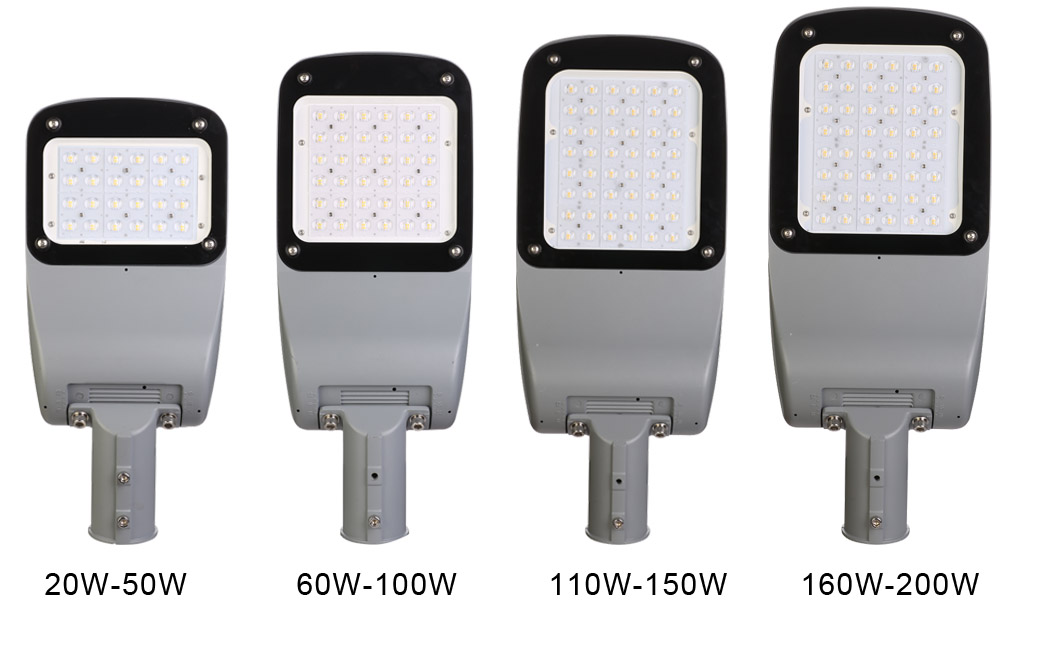

    Model Luma-20/30/40/50 Luma-60/70/80/90/100 Luma-110/120/130/140/150 Luma-160/170/180/190/200
    Power 20W/30W/40W/50W 60W70W/80W/90W/100W 110W/120W/130W/140W/150W 160W/170W/180W/190W/200W
    Dimension 483.2*230*126.5mm 548*230*126.6mm 598*257.1*128.7mm 654.6*320.4*131.1mm
    Weight 4.6kg 6.8kg 7.6kg 8.6kg
