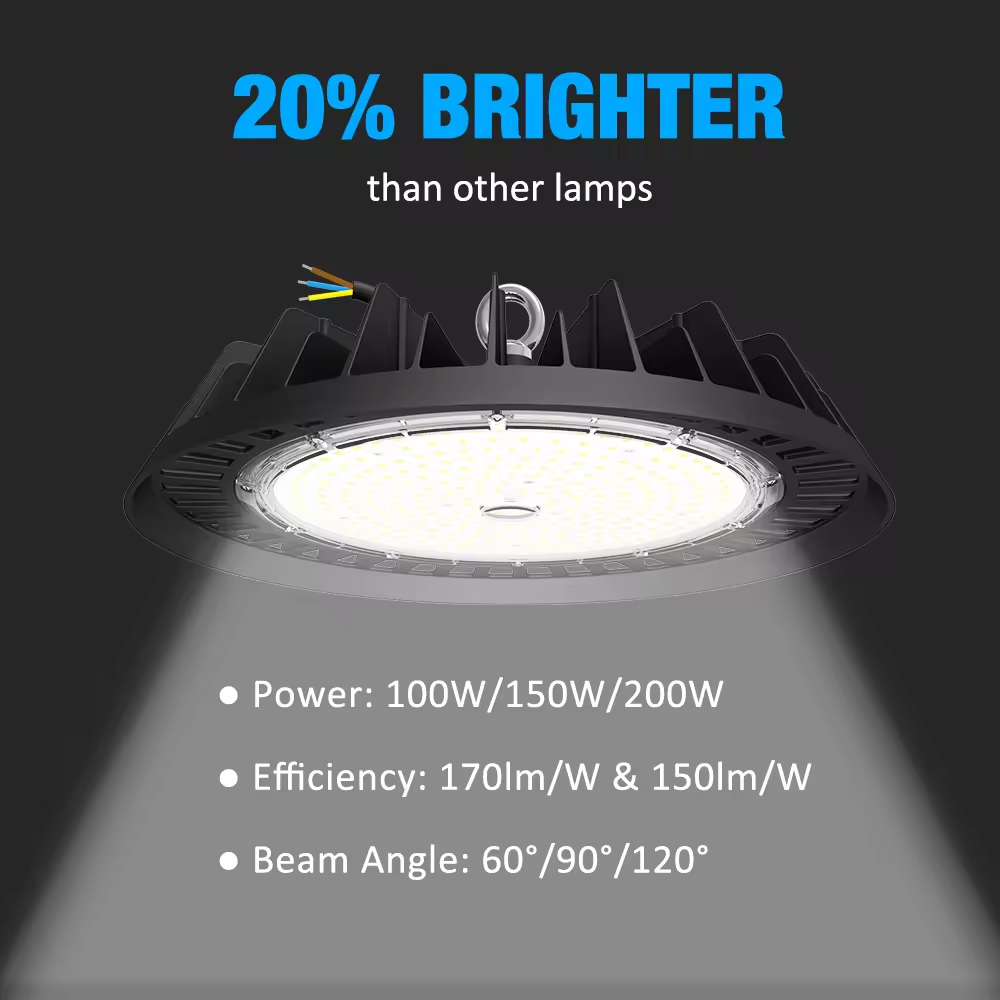

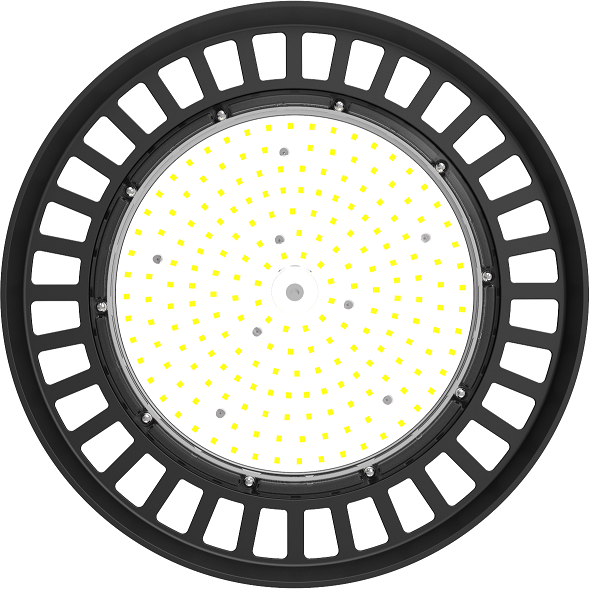

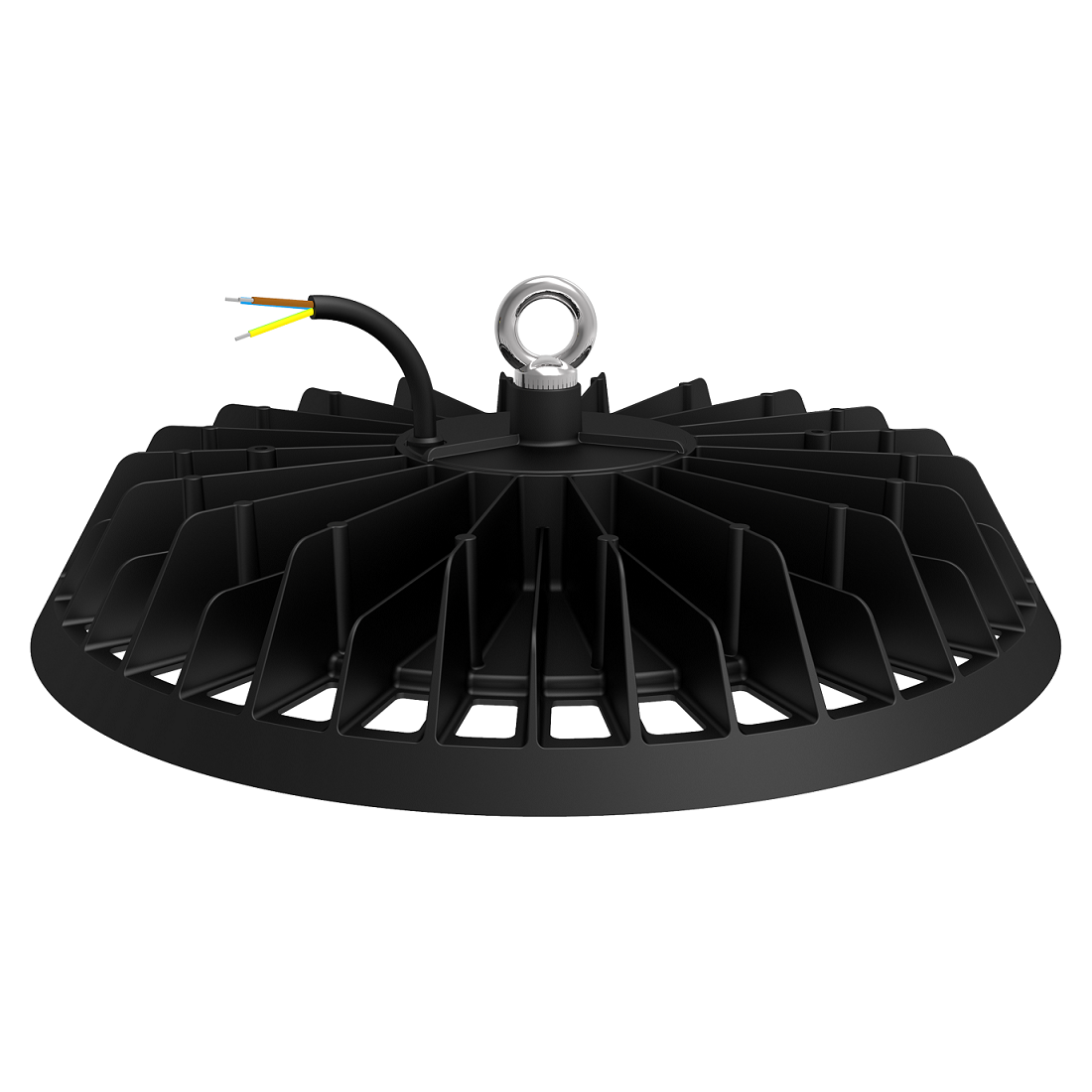

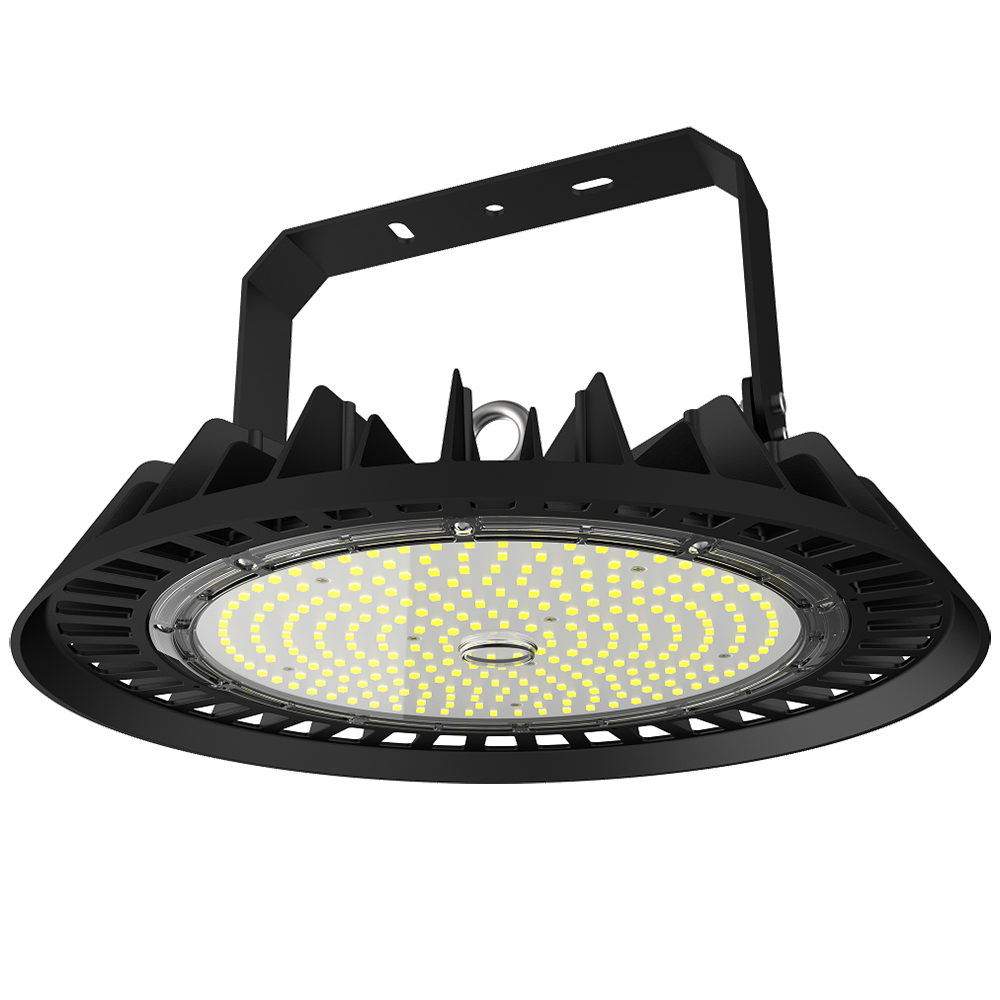

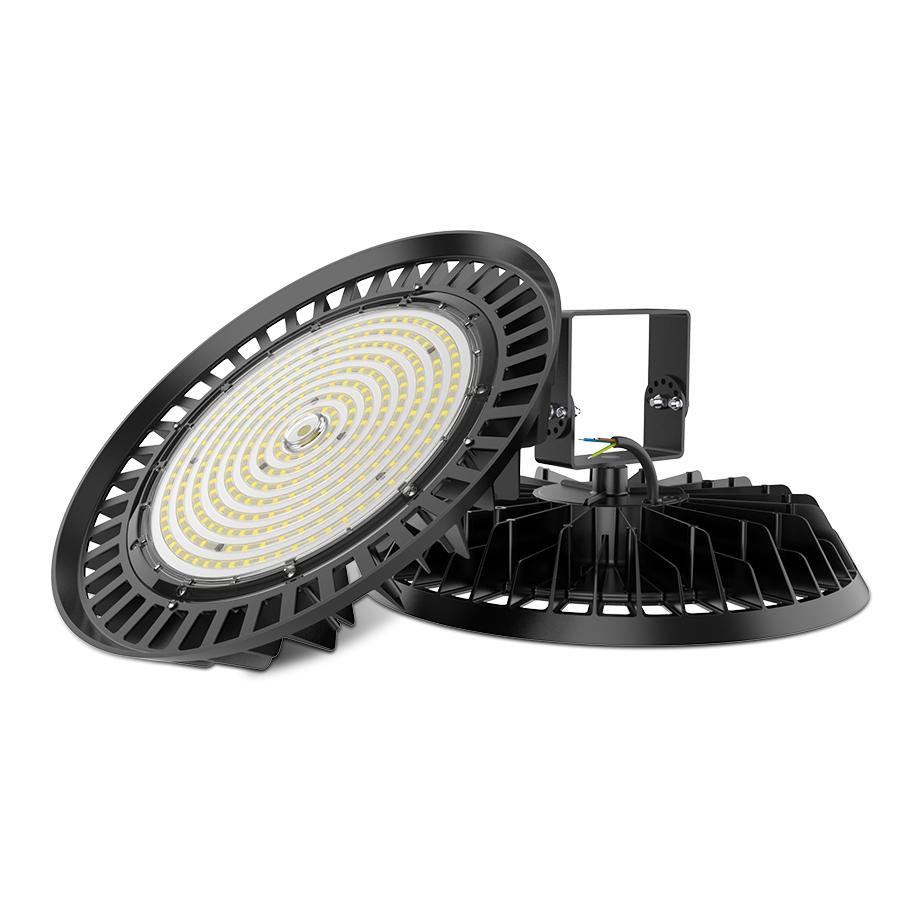

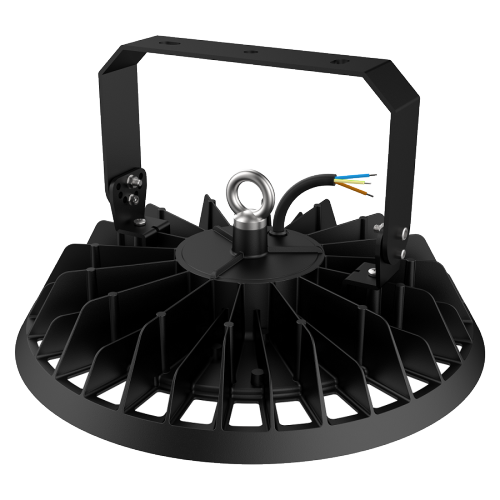

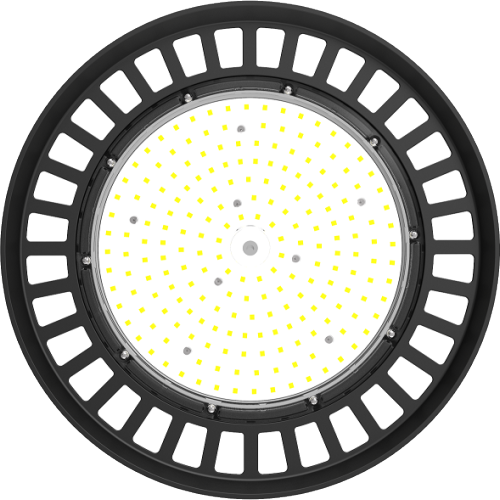

Liona Series LED UFO High Bay Light with Compact Built-in Driver

Compact built-in driver design offers advantages in quality and price. Light-on-demand feature with optional motion sensor;
  • Wattage60W~200W
  • Input Voltage220V-240V
  • Lumen Efficacy150lm/W; 170lm/W
  • MaterialADC12 aluminum; PC lens; Glass cover
  • Protection RatingIP65;IK09
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceN/A
  • InstallationBracket; Chain
  • Color Temperature3000K/4000K/5000K/5700K/6500K
  • C.R.I70;80
  • Driver BrandHaisen
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI
  • Power Factor0.9
  • SPD4KV
  • SocketNEMA; Zhaga
  • Light Distribution60° /90°/120°
  • Ambient Temperature-30℃~45℃
  • Life Time50,000 hours
  • Warranty5 years
  • More Less
    • Model:
      60W
      100W
      150W
      200W
    Description Specifications
    Description

    Product Summary:

    The Realshine Liona Series LED UFO High Bay Light features a compact built-in driver design, making it a prime example of high cost performance and the preferred choice for wholesalers. With exceptional performance and unparalleled value, this innovative lighting solution achieves an impressive luminous efficacy of up to 170lm/W. Looking for an independent driver option? Look no further! We've got you covered with our Karina Series, delivering exceptional performance at an unbeatable price.

    Realshine boasts 12 years of extensive industry research and development expertise, committed to producing superior industrial lighting fixtures. Our range of high-quality, stylish and low maintenance products encompass LED street lights, high bay lights, floodlights, and various other lighting solutions at unbeatable prices.


    Features:
    • Build-in driver design offers advantages in quality and price
    • Compact ultra-thin design, reduce shipping costs, saving up to 40%.
    • Light-on-demand feature with optional motion sensor.
    • Compact housing optimised for heat dissipation and reduced dust accumulation
    • Dedicated range of mounting accessories.
    • 5 years warranty.

      Light Distribution Curve:
      The beam angle is 60°/90°/120°.
      Beam angle of Realshine Liona Series Light

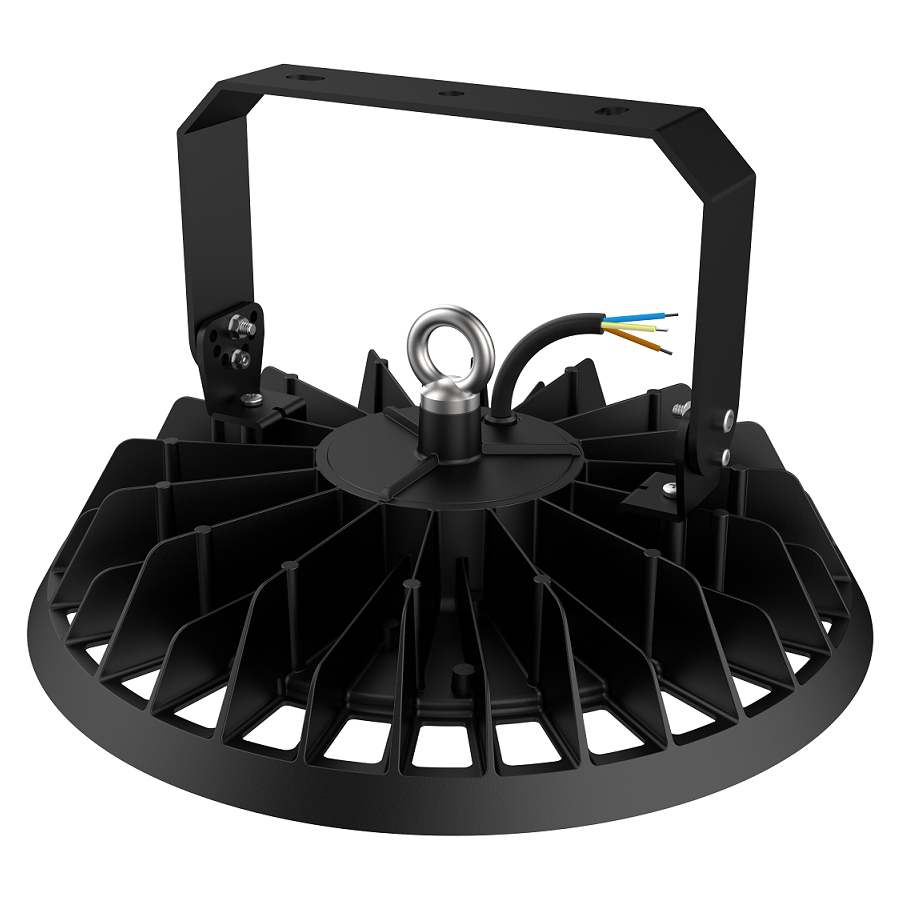

      Abundant Accessories:

      Accessories of Realshine Liona Series Light

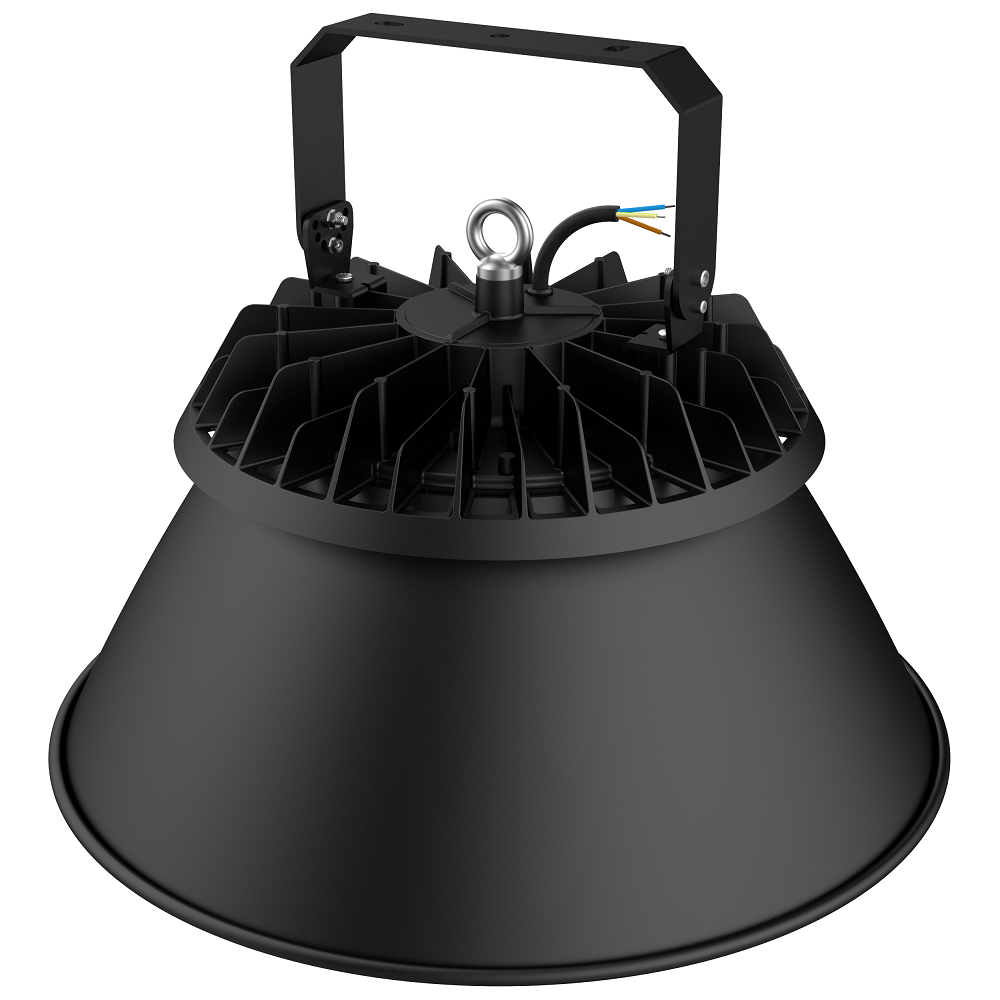

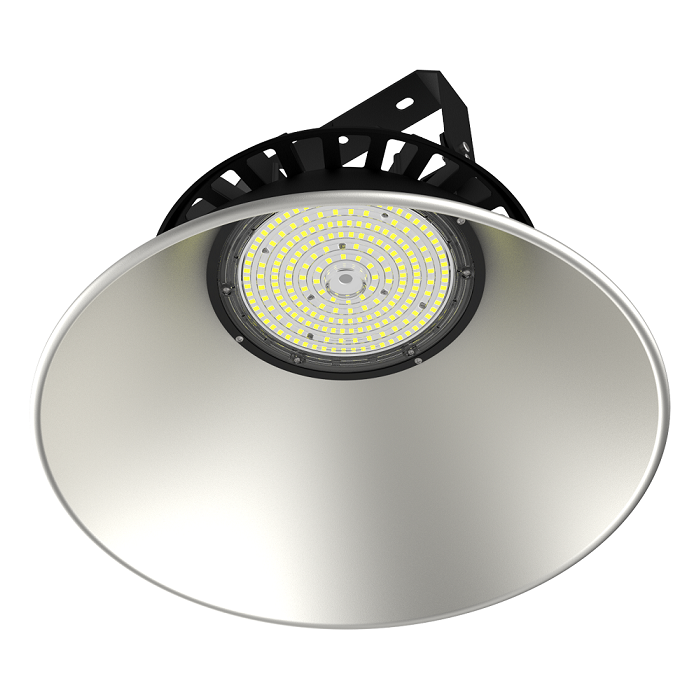

    Anti-Glare Reflector:
    We offer Aluminum and PC reflectors that are especially suitable for large indoor spaces, such as warehouses, factories, and gymnasiums. By directing the light downwards towards the work or activity area, our reflectors help to improve lighting efficiency and reduce glare, making them an integral component of your lighting setup.
    Reflector of Realshine Liona Series Light

    Reduce Shipping Costs

    Thanks to the compact design, the Liona Series can load 40% more than regular high bay lamps in one container, which will save your shipping cost a lot.
    Shipping cost of Realshine Liona Series Light

    Typical Application Senario:

    • Sport Facilities
    • Industrial and Commercial Halls
    • Warehouses
    • Car Parks
    • Large Areas

    Application of Realshine Liona Series Light

    Specifications
    Model All series (60W~200W)
    Input Voltage AC220~240V 50/60Hz
    Power Factor 0.9
    Luminous Efficacy 150lm/W; 170lm/W
    CCT 3000K/4000K/5000K/5700K/6500K
    CRI Ra70/80
    THD 15%
    Beam angle 60°/90°/120°
    Surge Protection 4kV-Line-Line, 4kV-Line-Earth
    Shell Material Housing: die-casting aluminum
    Switching Cycles 100,000 times
    Operating Temp. -30~45
    Accessories Anti-glare reflector, U -shaped bracket, anti-fall rope

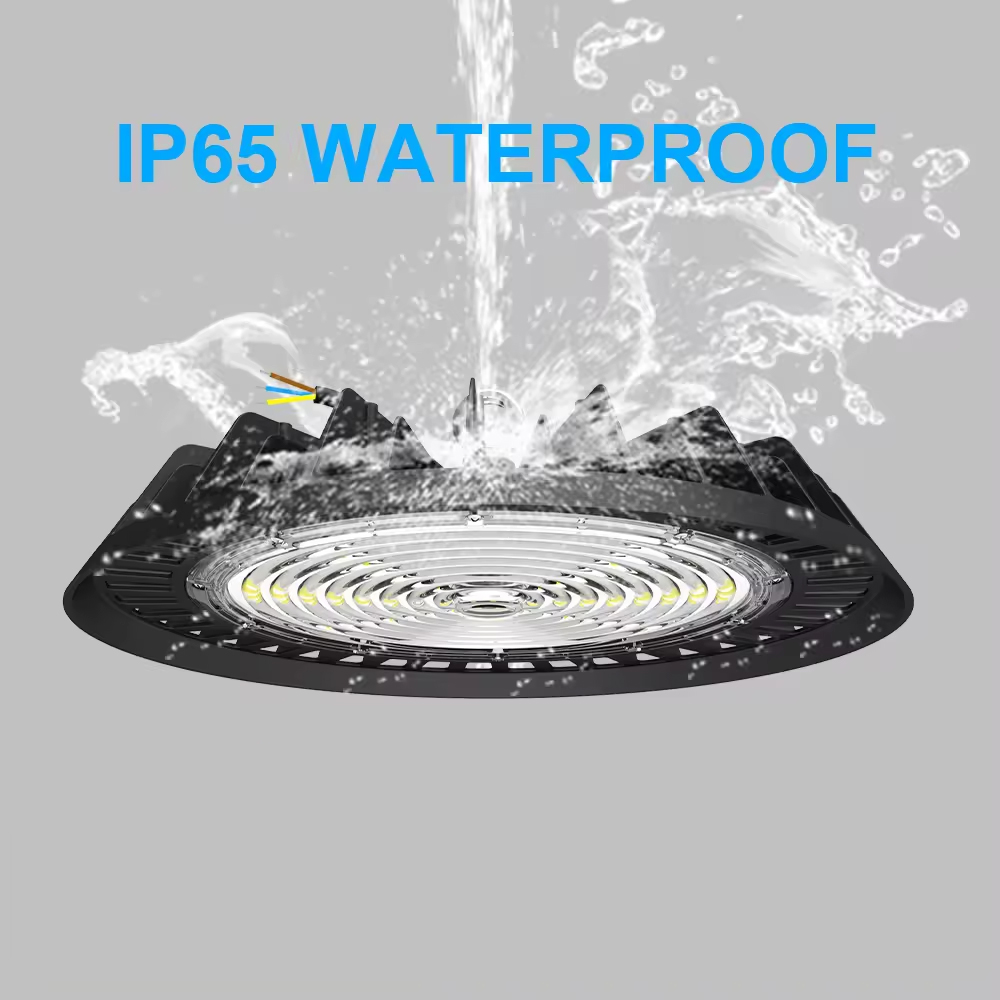

    Protection level IP65,IK09

    Model Liona-60/100 Liona-150 Liona-200
    Power 60W/100W 150W 200W
    Dimensions Ø280×124 mm Ø320×126 mm Ø360×128 mm
    Net Weight 1.6kg 1.9kg 2.3kg
    Package Size 320*320*115mm 360*360*120mm 400*400*120mm
    Gross Weight 2.0kg 2.6kg 3.3kg

    Dimenstion of Realshine Liona Series Light
