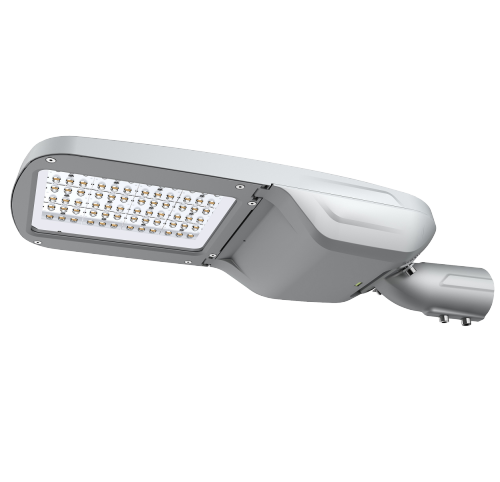

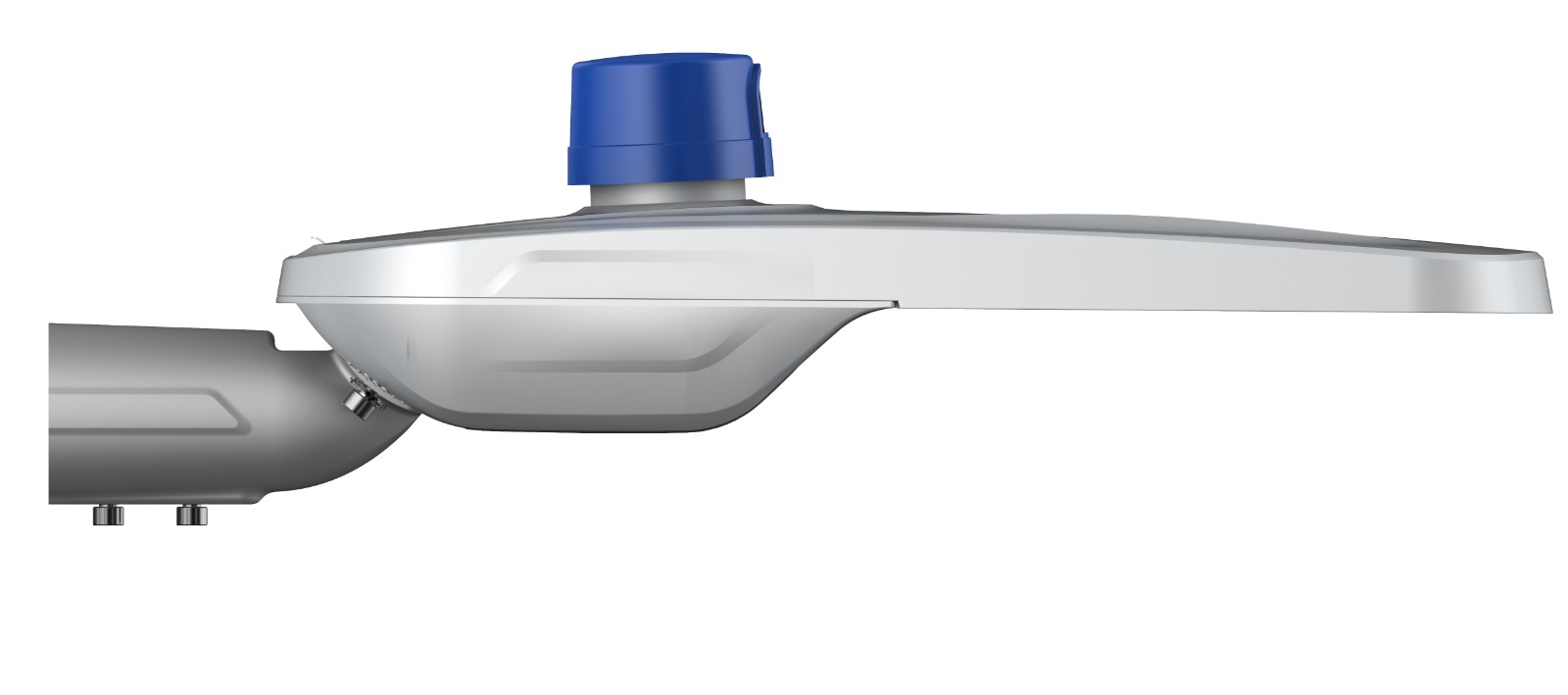

illusion Series LED Street Light 25W-180W

Tool free maintenance. Adjustable arm supporting both horizontal and vertical installation.
  • Wattage25W~180W
  • Input Voltage100V-277V
  • Lumen Efficacy150lm/W
  • MaterialADC12 aluminum; PC lens; Glass cover
  • Protection RatingIP66;IK09
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceYes

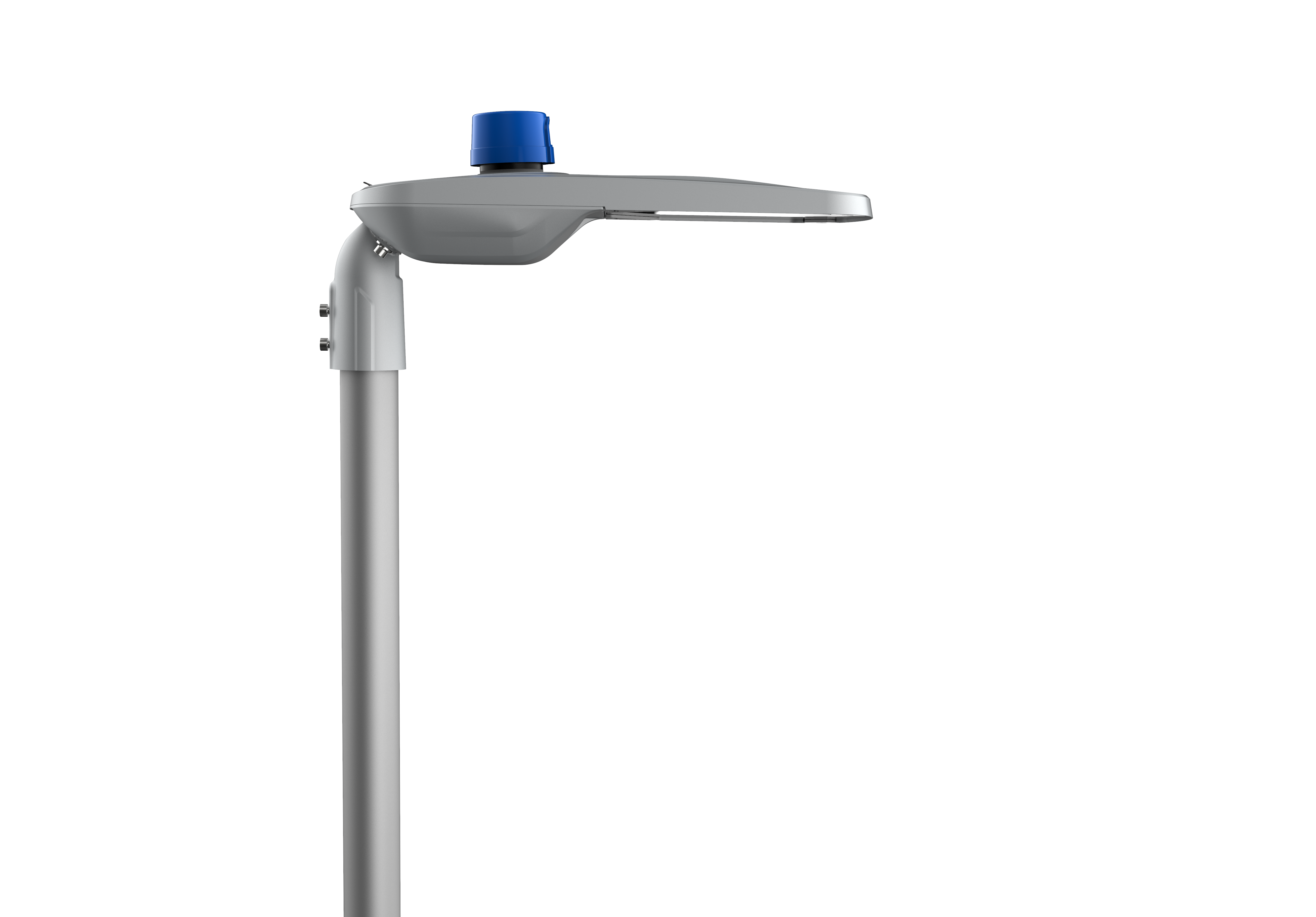

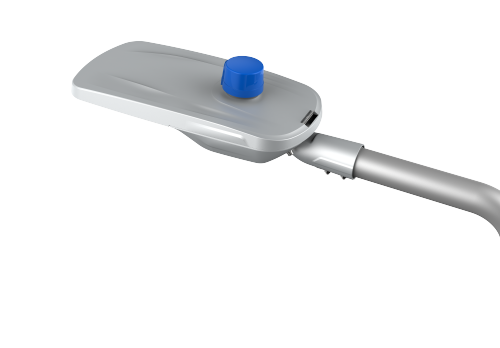

  • InstallationCompatible to Post-top mounting and Side-entry mounting
  • Color Temperature3000K/4000K/5000K/5700K/6000K/6500K
  • C.R.I70;80
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI; LoRaWAN
  • Power Factor0.95
  • SPD10KV
  • SocketNEMA; Zhaga
  • Light DistributionType II / III / IV/V
  • Ambient Temperature-40℃-50℃
  • Life Time100,000 hours
  • Warranty5-10 years
  • More Less
    • Model:
    Description Specs

    Product Summary:

    The Realshine’s ILLUSION Series LED street light embrace a striking yet unobtrusive design with uncompromising light quality or energy efficiency. The luminaire harvests the high efficacy, long operation life, and reliability benefits of LEDs by taking advantage of Realshine's comprehensive engineering philosophy and integrated manufacturing solutions. Architectural aesthetics, design integrity and engineering depth blend together to make ILLUSION the premier outdoor lighting fixture for public roadways, urban roads, residential streets, parking lots and pedestrian areas.

    ILLUSION incorporates a highly engineered housing that serves as a robust heat sink utilizing both convection and conduction methodology for removing the heat generated from the LED semiconductor junction. One-piece heavy duty housing, made of low copper aluminum alloy, is cast with a plurality of integral fins that feature an aerodynamically optimized tunnel design. The advanced geometry maximizes the total ambient contact surface area while stimulating a fully developed laminar flow for better convective cooling. With its capability of integrating package and system level heat sinking, ILLUSION can perform in ambient temperatures ranging from -40 to +50°C, ensuring maximum hours of maintenance-free, high current density operation to assure L70 rated lumen maintenance.

    This highly configurable LED street light offers a wide variety of LED packages, drive currents, and lighting management options. ILLUSION operates at a wide range of electrical power that can be scaled from 25Watts to 180 Watts, with a system luminous efficacy of up to 150 LPW. The high intensity Lumileds 5050 LEDs deliver exceptional lumens-per-dollar performance and boast high reliability utilizing ceramic-package technology. Full cutoff, IESNA Type II,III,IV optics made of reflective optics maximize light extraction, optimize application efficiency and minimize glare.

    The ILLUSION series are equipped with waterproof Moso, Sosen or Inventronics LED drivers to optimize driving current for LEDs with improved performance in power factor (PF), harmonic performance and efficiency. The constant current LED driver offers a high level of reliability with robust short circuit, over-temperature and input voltage protection. An integral SPD protects the complete system against peaks and surges of up to 10 kV / 10 kA. These power supplies can be dimmed with PWM and 0-10V inputs, while the DALI compatibility allows for full digital configuration through the standard control protocols.

    A durable polyester powder coating electrostatically applied over the aluminum housing provides excellent corrosion resistance as well as optimal color and gloss retention to maintain the lasting visual appeal. The electrical and optical chambers are fully sealed to provide high ingress protection against water and dust. The pole-top or side entry mount accepts 40-60mm O.D. mast arms with +15° to -15° tilt (side entry) or 0° to 15° tilt (post top) in 5° increments. ILLUSION allow for tool-less maintenance for ease of field work and installation.

    Features and Benefits:

    • Unique design and predominant configuration.
    • Tool free maintenance.
    • Adjustable arm supporting both horizontal and vertical installation.

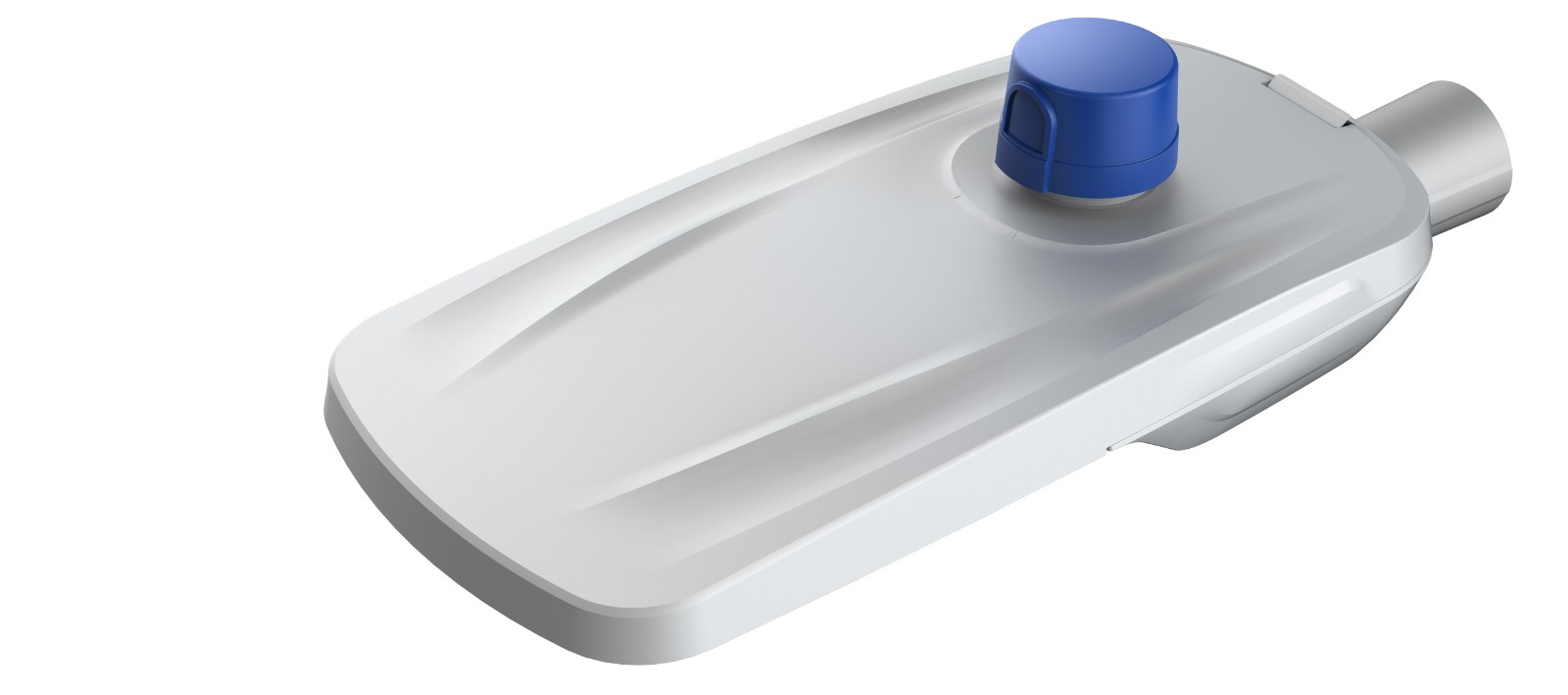

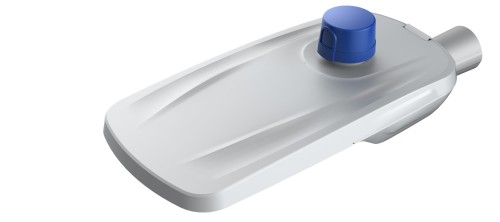

    • NEMA/ Zhaga socket is provided.
    • High-transparency tempered glass cover.
    • Reservation for function extension.
    • IP66&IK09.
    • 5~10 years warranty.

    Light Distribution Curve:

    Available in two shapes:

    Product Explosion Diagram:


    Model All Series(40W~120W)
    Input Voltage 100-277VAC, 50-60Hz
    PF 0.95
    Luminous Efficacy 150lm/W
    Light Source Lumileds San'an 5050
    LifeTime @L70 >72,000h
    CCT 2700K, 4000K, 5000K, 6500K
    CRI >70 (>80, >90 available)
    SDCM <5 (<3 available)
    Beam Angle  T2, T2S, T2M, T3M
    Driver Brand Inventronics / MeanWell /Sosen
    THD <15%
    Dimmable Options 1-10V, DALI, LoRaWAN
    SPD 10kV
    Material Body: Die-casting Al, Lens: Toughened Glass
    IP Rating IP66
    IK Rating  IK09
    Certification ENEC /CB /SAA /CE /ROHS
    Warranty 5~10 years

    Model illusion-25 illusion-30 illusion-50 illusion-60 illusion-75 illusion-80 illusion-100 illusion-120 illusion-150 illusion-180
    Power 25W 30W 50W 60W 75W 80W 100W 120W 150W 180W
    Dimension 533*196*113 mm 556*237*128 mm 630*261*128 mm
    Net Weight 3.3kg 4.0kg 4.8kg
