Product Summary:

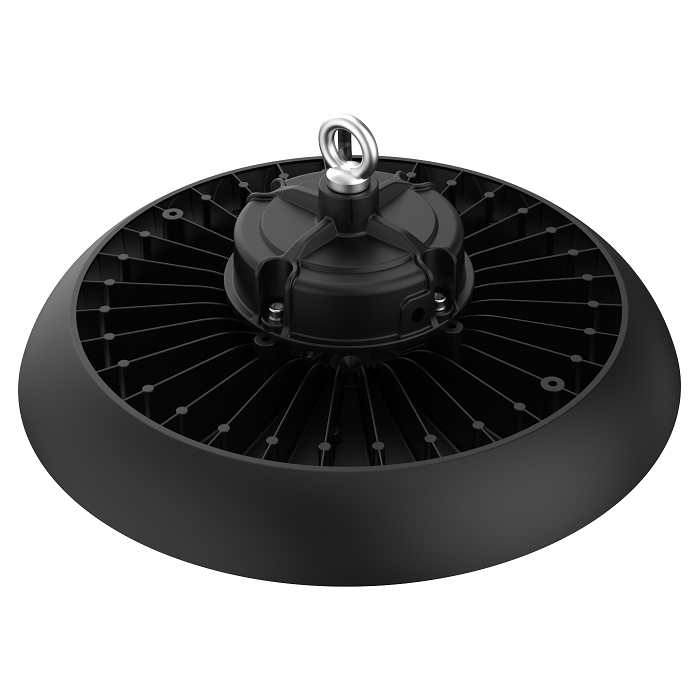

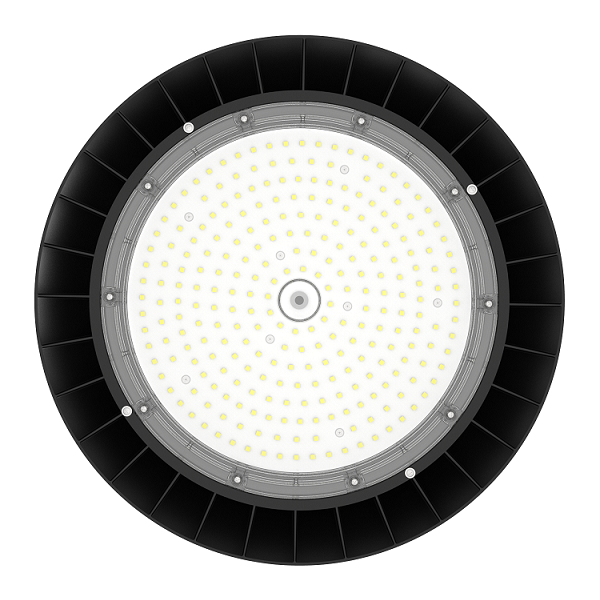

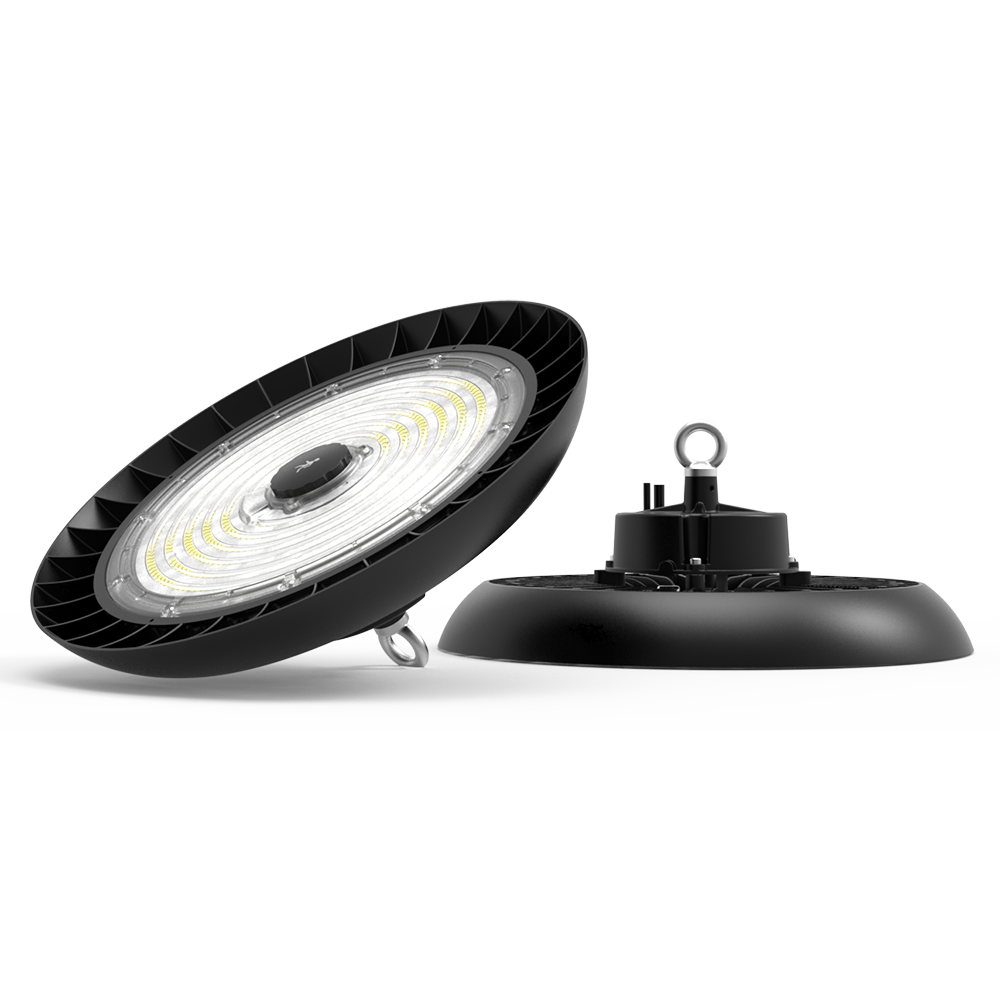

Realshine's Crius Series LED High Bay Light is engineered with a die-cast aluminum cooling housing that boasts upper and lower vents designed to quickly dissipate heat through convection, ensuring excellent performance. Experience the advantages of consistent and even light distribution, which can significantly reduce energy consumption while amplifying efficacy in any application site.
We pride ourselves on providing a variety of power supply options through our partnerships with renowned brands to accommodate your specific needs. Whether you require 0-10V dimming or DALI-2 functionality, rest assured that we are dedicated to offering you the most optimal solution.
Motion Sensor Options:
Industrial spaces including warehouses, distribution centers, and production facilities with less than 50% occupancy and high ceilings ranging from 15-45 feet are ideal locations for motion sensors. These motion sensors can help conserve energy by providing light solely where it is essential and only when it is necessary, therefore reducing energy costs.
Mounting Options:

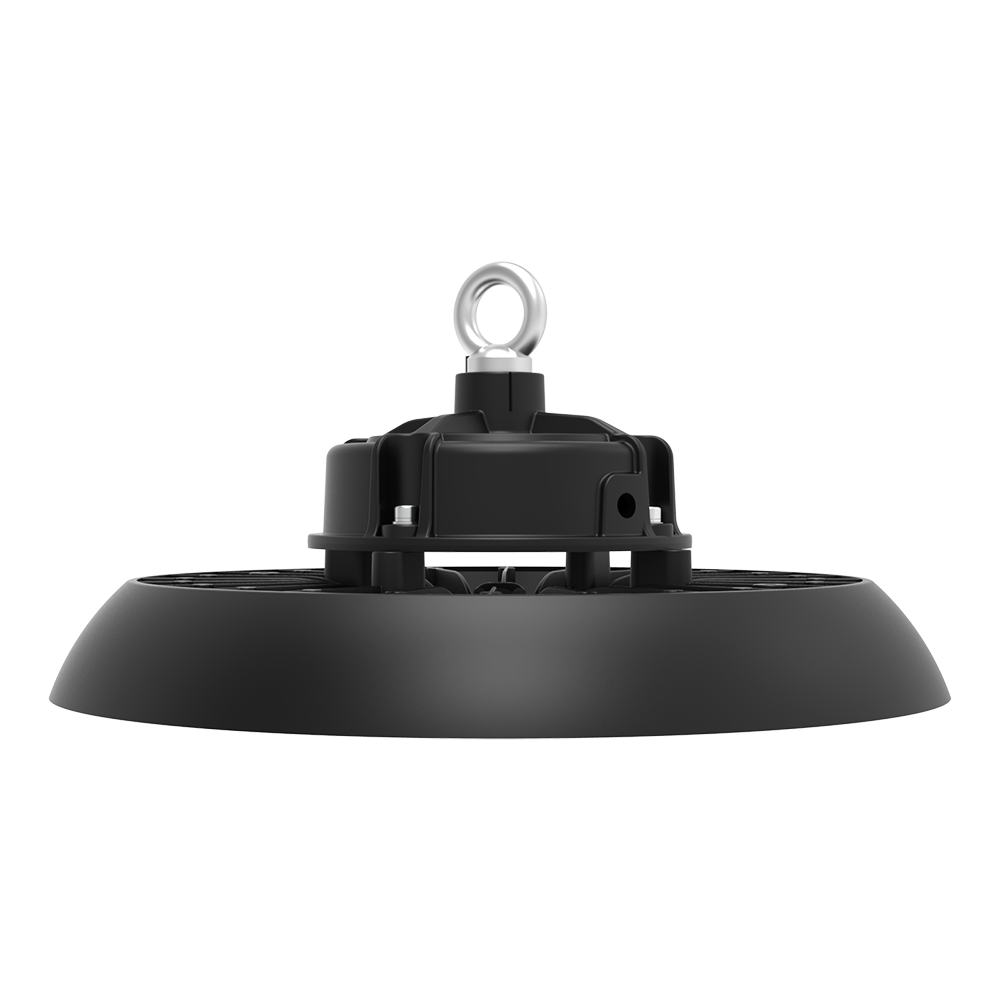

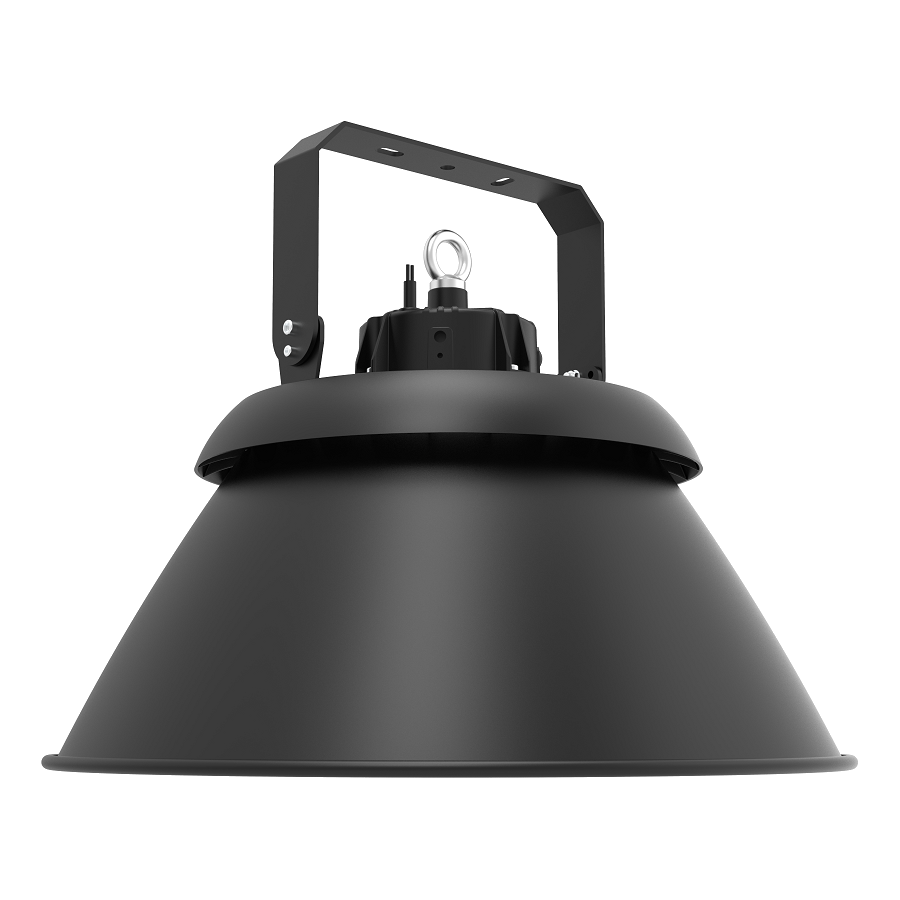

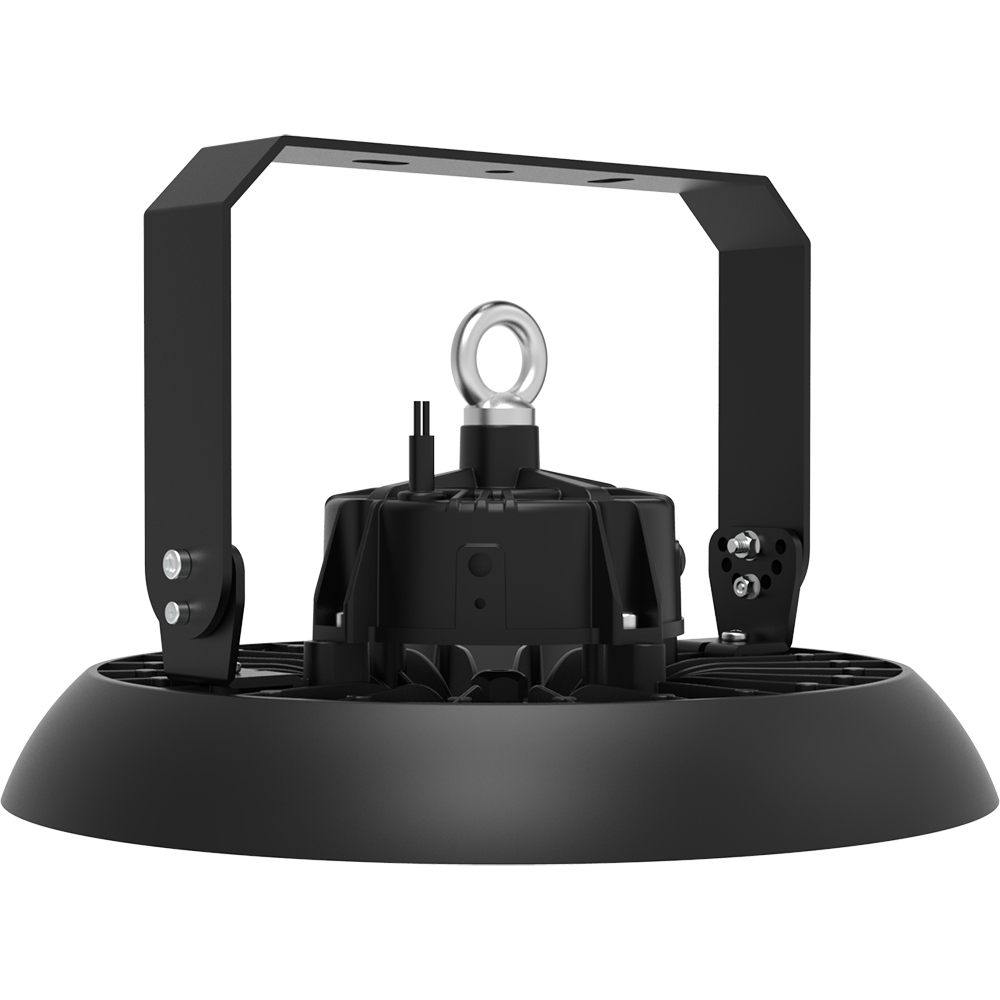

The LED UFO high bay lamp can support both ring mounting and bracket mounting.
Typical Application Senario:
Model | All series (100W~200W) |
Input Voltage | AC120~277V 50/60Hz |
Power Factor | ≥ 0.9 |
Luminous Efficacy | 210lm/W; 190lm/W; 170lm/W; 150lm/W; |
CCT | 3000K/4000K/5000K/5700K/6500K |
CRI | Ra≥70/80 |
THD | ≤15% |
Beam angle | 60°/90°/120° |
Surge Protection | 6kV-Line-Line, 6kV-Line-Earth |
Shell Material | Housing: die-casting aluminum, Light-emitting surface: PC |
Switching Cycles | >100,000 times |
LED Lifespan | L70@25℃ 100,000h |
Operating Temp. | -30℃~45℃ |

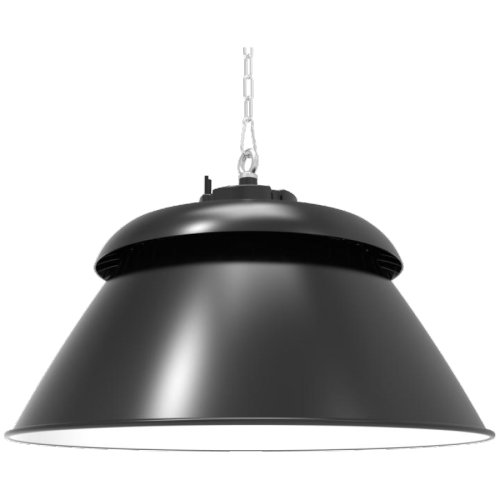

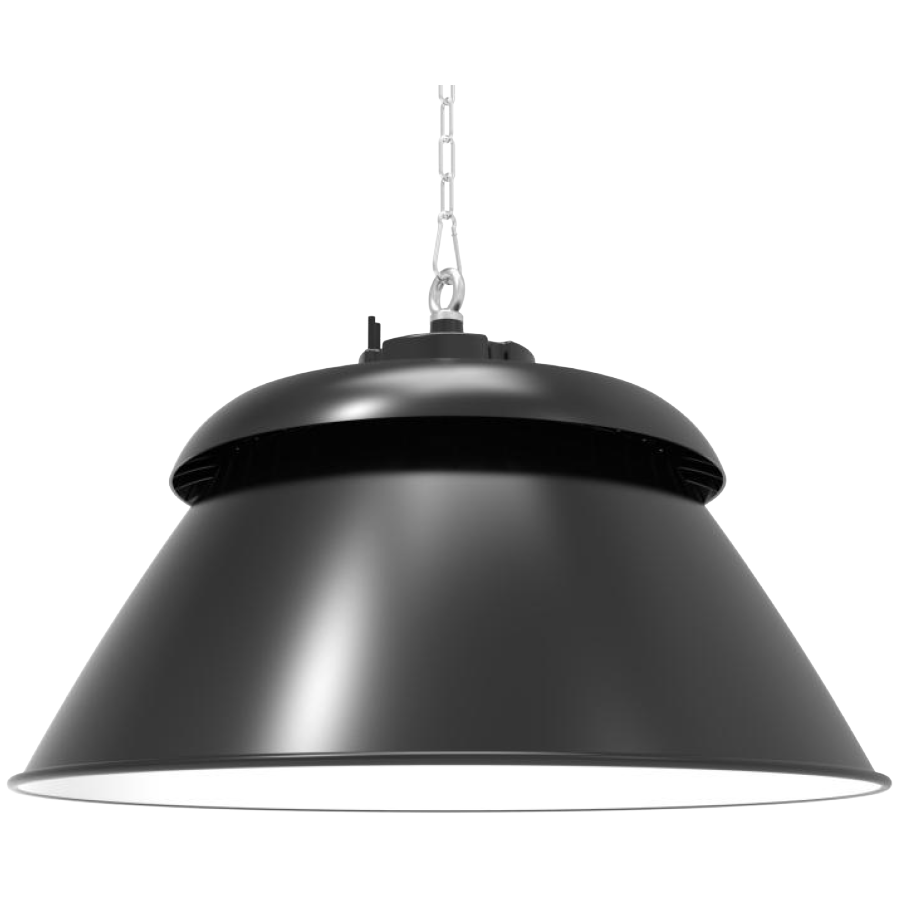

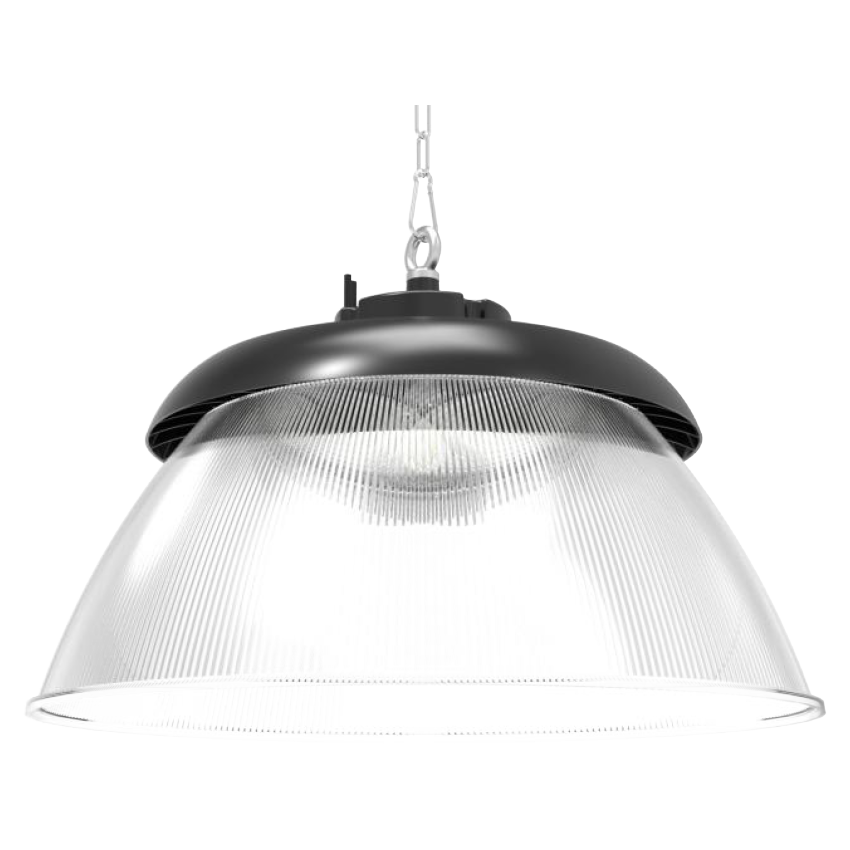

Accessories | Anti-glare reflector, U -shaped bracket, Anti-fall rope, Motion sensor |
Protection Rating | IP65, IK09 |
Model | Crius-100 | Crius-150 | Crius-200 |
Power | 100W | 150W | 200W |
Dimensions | Ø260×146 mm | Ø300×149 mm | Ø350×150 mm |
Net Weight | 1.9kg | 2.3kg | 2.9kg |
Package Size | 310*310*170mm | 360*360*175mm | 400*400*180mm |
Gross Weight | 2.3kg | 3.0kg | 3.7kg |
