Product Summary:

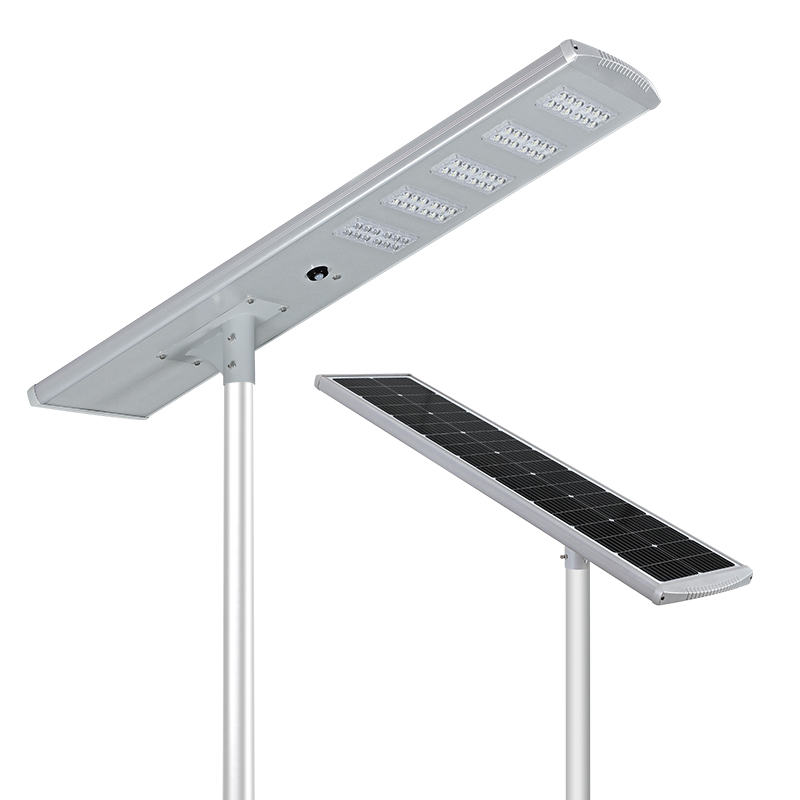

The Asda Series Solar LED Street Light adopts an integrated design, consisting of lamp, battery, and photovoltaic panel all-in-one. The high-end battery cells and built-in multi-protection BMS ensure it has long life time, up to 8-10 years.
Features and Advantages:
Control Mode:
The solar LED lamp has two control modes including motion sensoring mode and time control mode (dust to dawn).

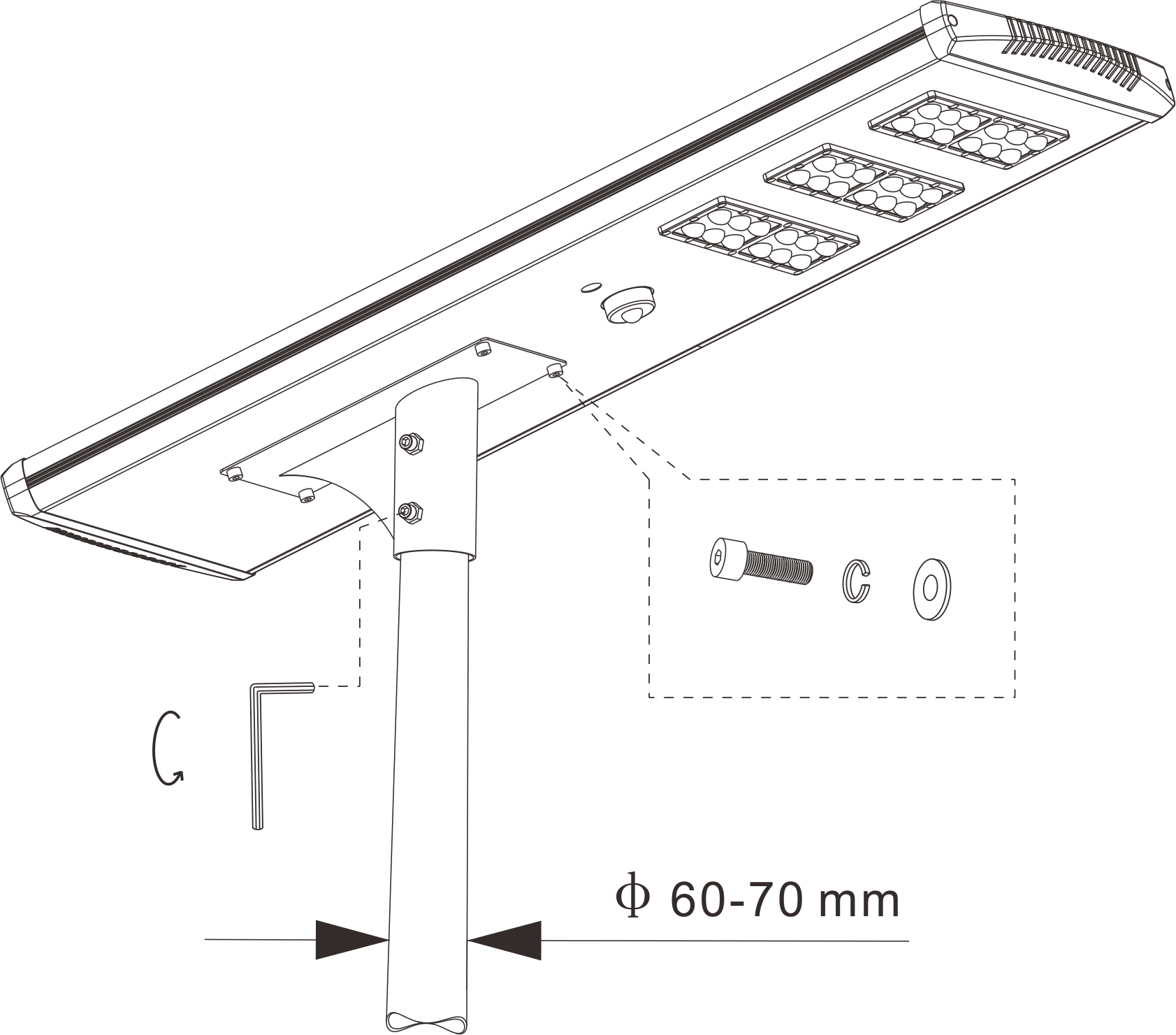

Product Structure Diagram：
Application：
| Model | All Series(60W~150W) |
| CCT | 6000K |
| Luminous Efficacy | 160lm/W |
| PV Panel Type | Monocrystalline Silicon |
| Battery Type | LiFePO4 |
| Control Way | Motion Sensor+Light Control |
| Charging Temp. | -10-60℃ |
| Discharging Temp. | -20~60℃ |
| Charging time | 6-8 hours |
| Discharging time | 30-36 hours |
| Material | Aluminum alloy |
| Protection Rating | IP65 |
| Warranty | 3 years |
| Model | Asda-60W | Asda-90W | Asda-120W | Asda-150W |
| Nominal Power | 60W | 90W | 120W | 150W |
| PV Panel Power | 6V 60W | 6V 80W | 6V 100W | 6V 120W |
| Lithium Battery | 3.2V 63Ah | 3.2V 90Ah | 3.2V 105Ah | 3.2V 120Ah |
| LED | 3030/48pcs | 3030/72pcs | 3030/96pcs | 3030/120pcs |
| Mounting Height | 3-5m | 4-6m | 6-8m | 8-10m |
| Dimension | 811*407*209mm | 1127*407*209mm | 1496*407*209mm | 1651*407*209mm |
| Gross Weight | 11.2kg | 13.4kg | 15.5kg | 17kg |
